Creating Templates

If installed, create a .json file and place it in C:\Users\{user}\AppData\Local\Pihitan\templates
If ran through jar, just place it in the same directory.

Template format

A template is a json file in the following format


  {
    "id": "Display Name",
    "windowName": "Archetype Plini X", // Needed for autodetection
    "color": [ 0, 0.5, 0.7, 1], // [ r, g, b, a ] max value is 1, used in highlight and wireframe
    "author": "pihitan", // displayed on start
    ...
    "sections": [  // Array of sections
      {
        "id": "pre-fx", // Section details
        ...
        "items": [ // Array of items
          {
            "id": "compressor", // item details
            "type": "GEAR",
            "pos": {
              "x": 15,
              "y": 70
            },
            ... // items may contain items
        ]
      }
    ]
  }

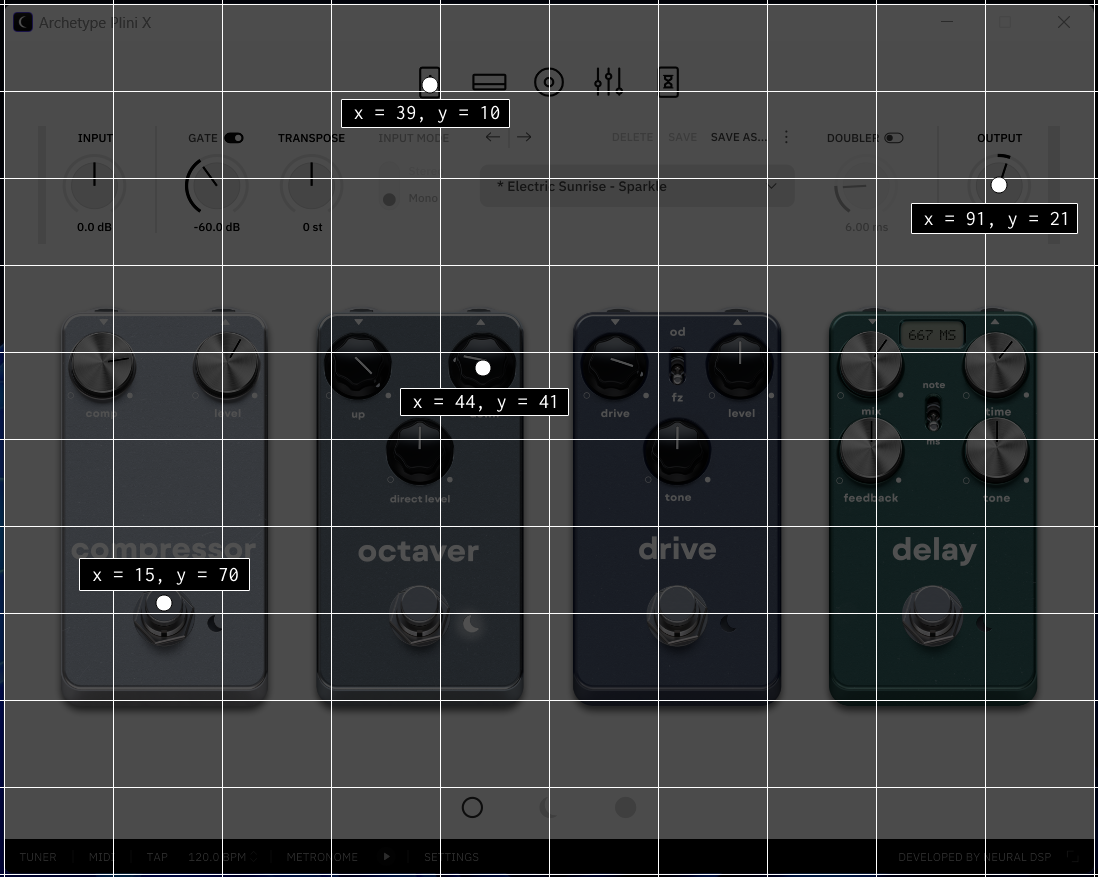

Each number defined in the template is a % size of the actual window with the upper left corner as x = 0, y = 0. Here are some examples of points in the grid.

Example coordinate grid, (0, 0) is upper left.

Define the position of prev / next preset button


  {
    "id": "program id", // display name
    ...
    "nextPreset": {
      "x": 48,
      "y": 15
    },
    "prevPreset": {
      "x": 45,
      "y": 15
    },
    ...
  }

Define sections. It is an array of objects. Each object has the following:


  {
    ...
      "id": "amp-clean",  // this will be displayed on screen
      "pos": {  // position that will be clicked
        "x": 39,
        "y": 10
      },
      "preStep": { // optional, this will be clicked after pos
        "x": 45,   // used in amp selectors
        "y": 10
      },
      "items": [ ... ] // will discuss in the next section
    ...
  }

Define items.


  {
    "id": "gain", // will be displayed as {section}:{item-id}
    "type": "GEAR", // Can be KNOB, TOGGLE, GEAR
    "pos": { // Position
      "x": 25,
      "y": 74
    },
    "items": [...] // Optional, only defined when type is GEAR
  },

KNOB - Sending press here will click the mouse on the containing item's pos
TOGGLE - Sending press here will click the mouse in place
GEAR - This item will not be navigated. A GEAR type is expected to have items inside it. The position of this GEAR item will determine the press position of the items inside it.

Here's an example of an item declaration for a drive/effects pedal.


  {
    "id": "drive",
    "type": "GEAR",
    "pos": {
      "x": 62,
      "y": 70
    },
    "items": [
      {
        "id": "drive",
        "type": "KNOB",
        "pos": {
          "x": 55,
          "y": 41
        }
      },
      {
        "id": "od/fuzz",
        "type": "TOGGLE",
        "pos": {
          "x": 62,
          "y": 41
        }
      },
      {
        "id": "tone",
        "type": "KNOB",
        "pos": {
          "x": 62,
          "y": 52
        }
      }
    ]
  }

In this example, when you are currently in drive, pressing space will make the program click on the parent item pos x = 62, y = 70

If currently in od/fuzz, pressing space will press on x = 62, y = 41 instead.

Please use the plini-x.json template that is included in the installation as a template / guide. Please consider sharing your templates. Thanks!
